CNC lathe-Yantai guide rail

Linsheng-CNC lathe manufacturing

Linsheng is capable of providing the various multi-functional tools & fittings to perfectly match the tailored machining requirements.

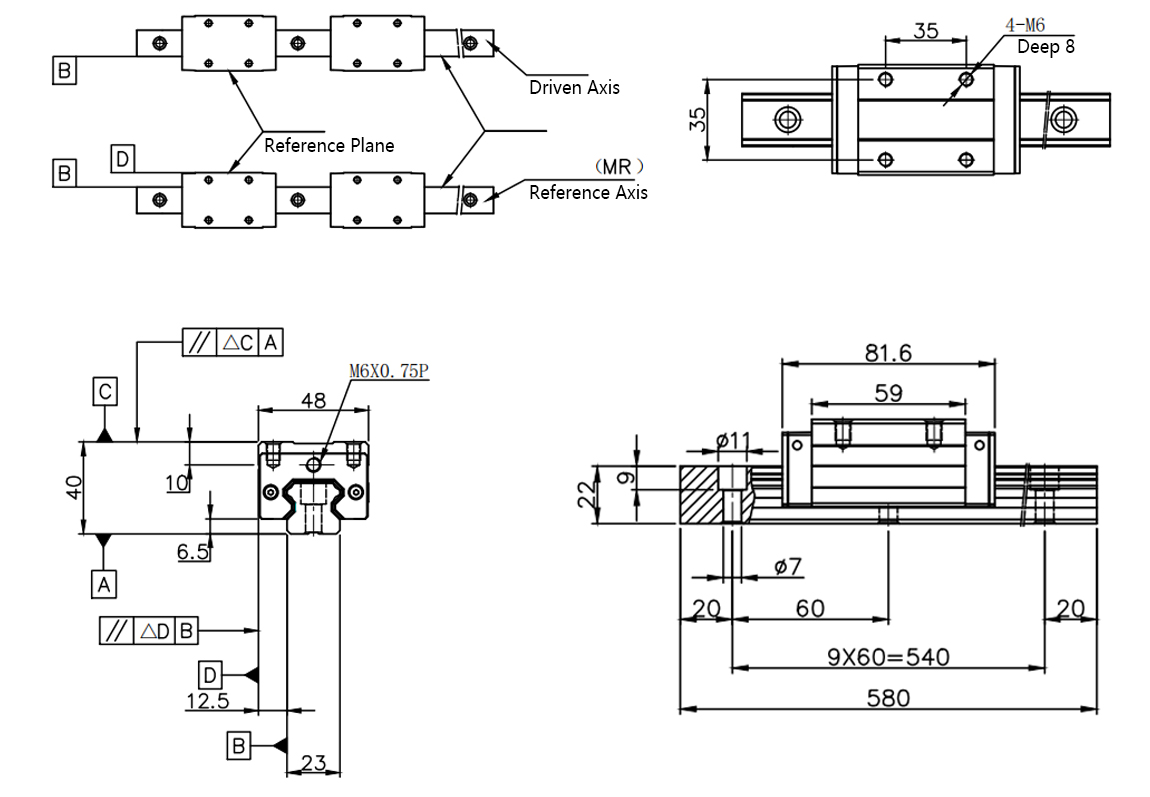

           01.MSA25S2SSF0+R580-20-20PII

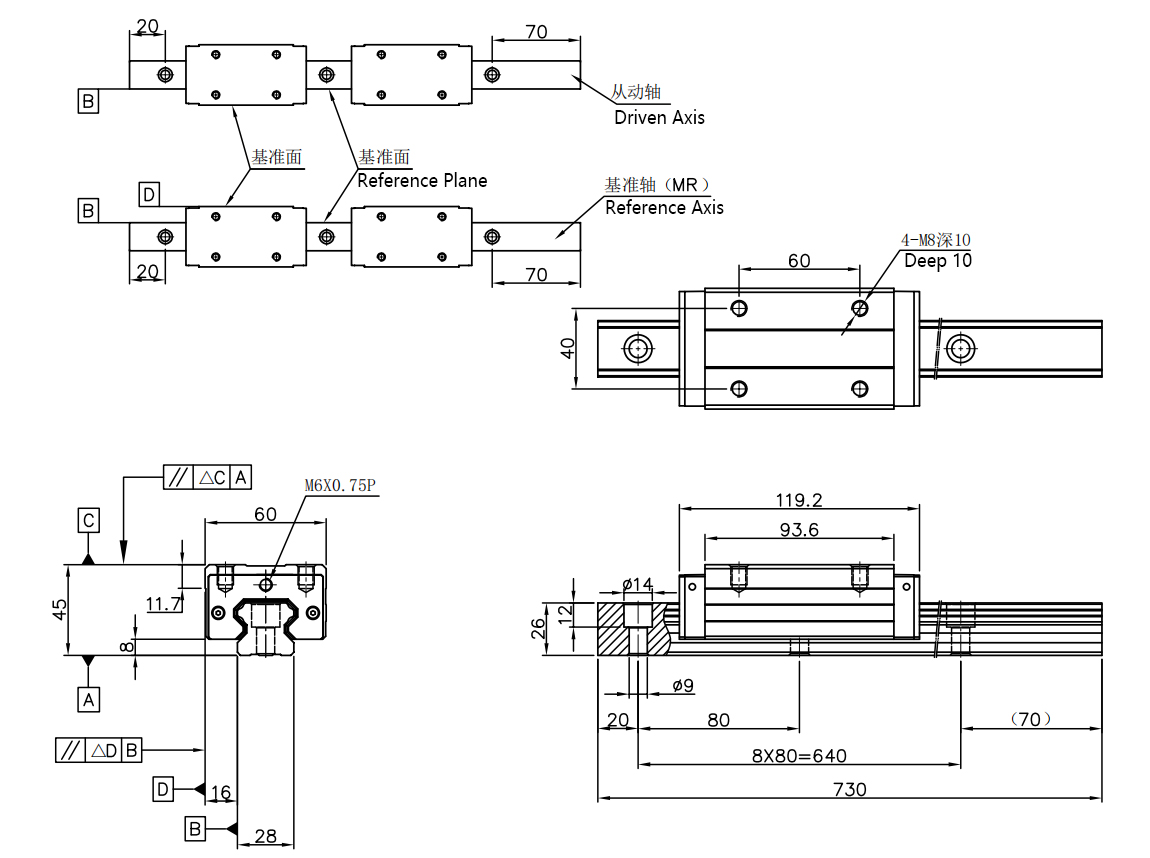

          02.MSA30S2SSF0+R730-20-20PII

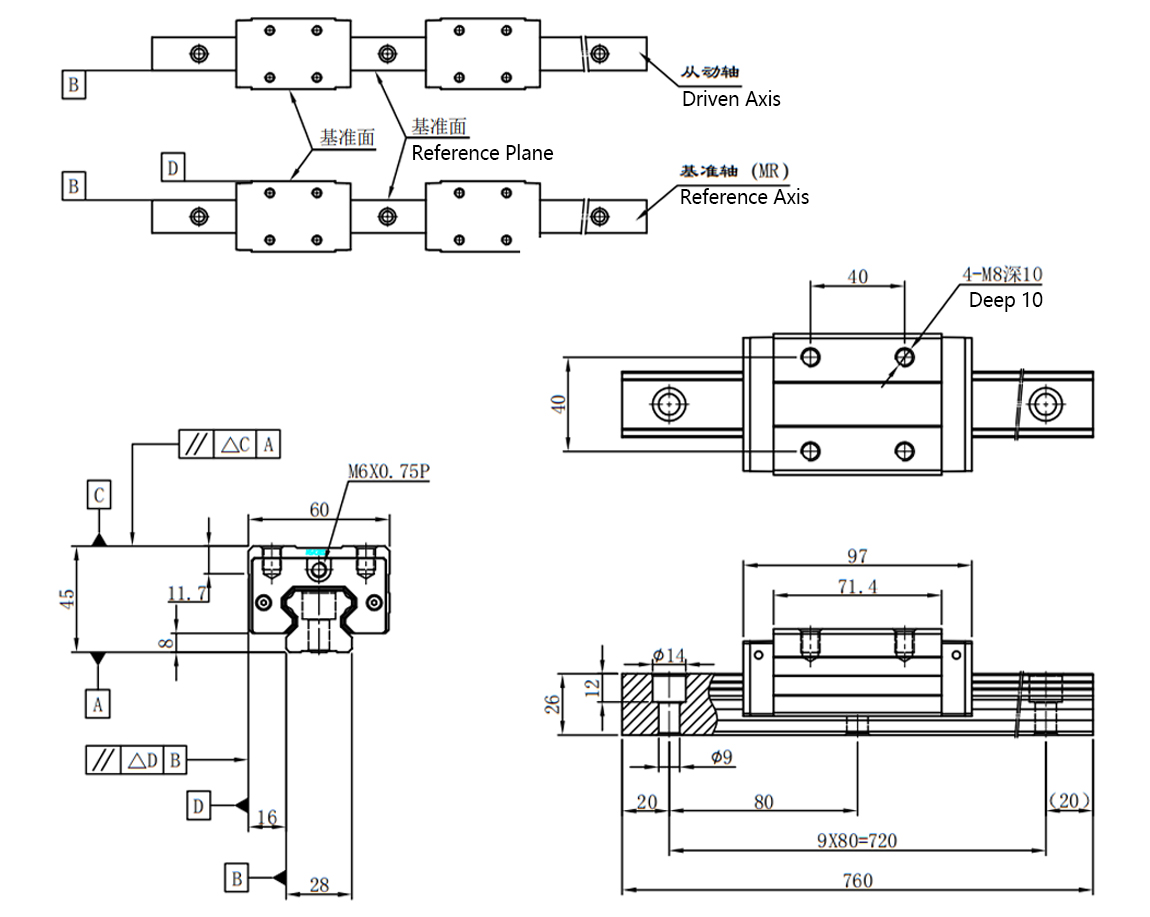

          03.MSA30S2SSF0+R760-20-20PII

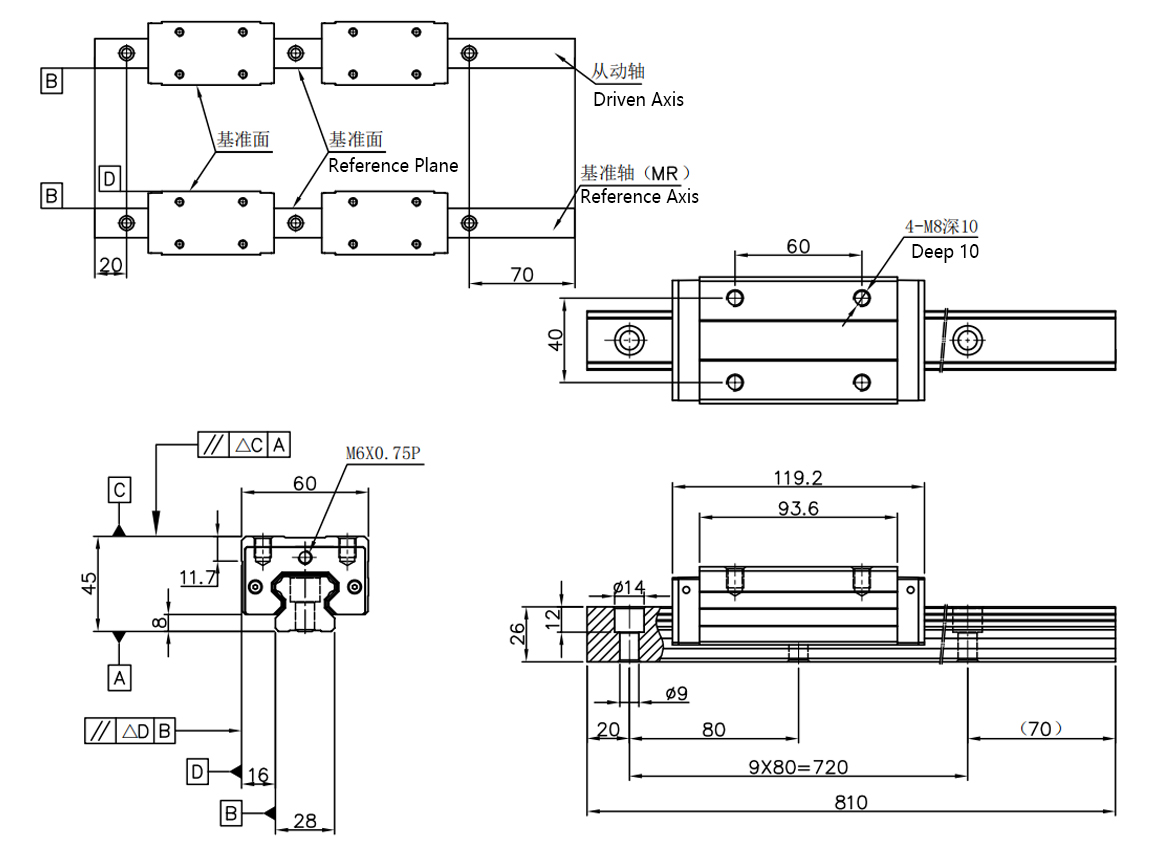

           04.MSA30LS2SSF0+R810-20-70PII

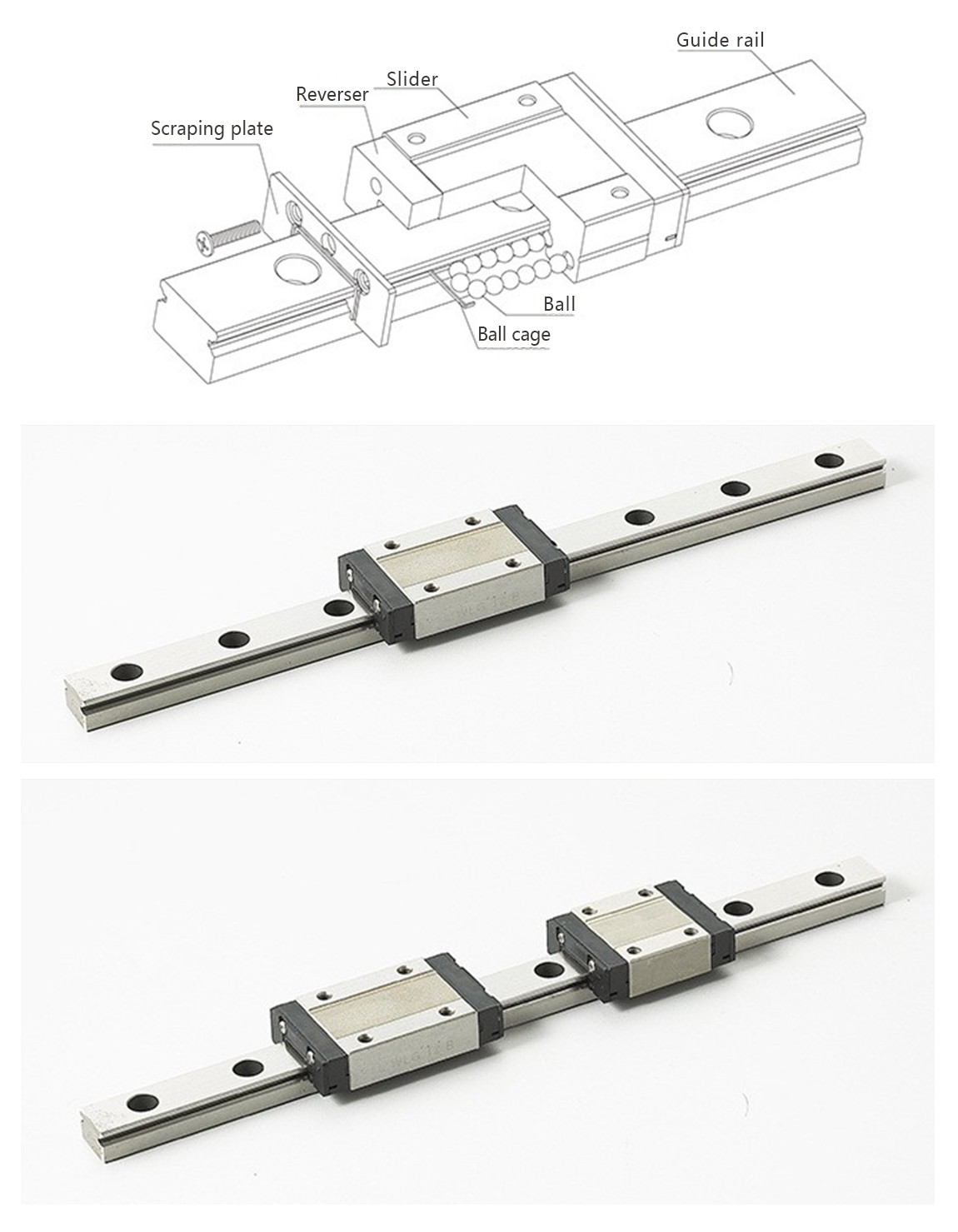

         The Yintai guide rail is the core guiding component of the feed system of a CNC lathe, responsible for supporting and guiding the tool holder and worktable to move precisely along the preset trajectory. It is made of high-strength alloy steel that is integrally formed, and its guide surface undergoes special hardening treatment, ensuring excellent wear resistance. Even under long-term high-load operation, it does not deform and can always maintain micrometer-level motion accuracy, significantly reducing processing errors.

Click on the following text link to watch the video

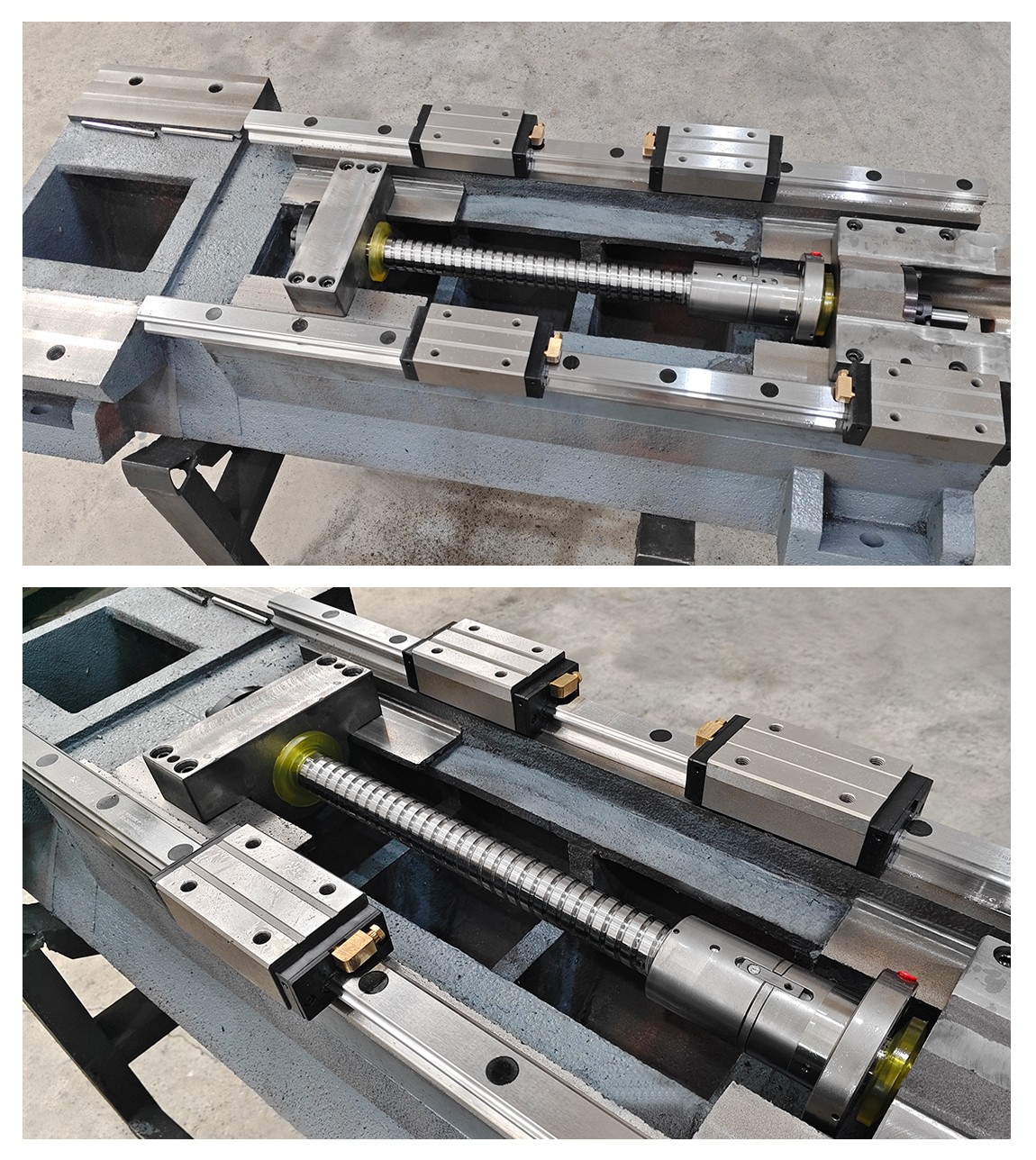

Source manufacturer of CNC lathes, lathes assembly, guide rail inspection

          Compared to ordinary guide rails, the rolling friction coefficient of the Yintai guide rail is only 1/50 of that of sliding guide rails. It has low running resistance, fast response speed, and the rapid movement speed can reach 60m/min. At the same time, the movement is smooth without any jamming, which can effectively prevent the tool holder from vibrating and ensure the surface processing quality of processes such as turning, drilling, and milling. The built-in dust-proof and sealing structure can prevent iron filings and cutting fluids from invading, and its service life is more than three times that of ordinary guide rails. It is the core guarantee for the long-term stable operation of CNC lathes.

Click on the following text link to watch the video

Lin Sheng CNC Lathe, Video of Initial Debugging Operation for XZ Travel of the Lathe
