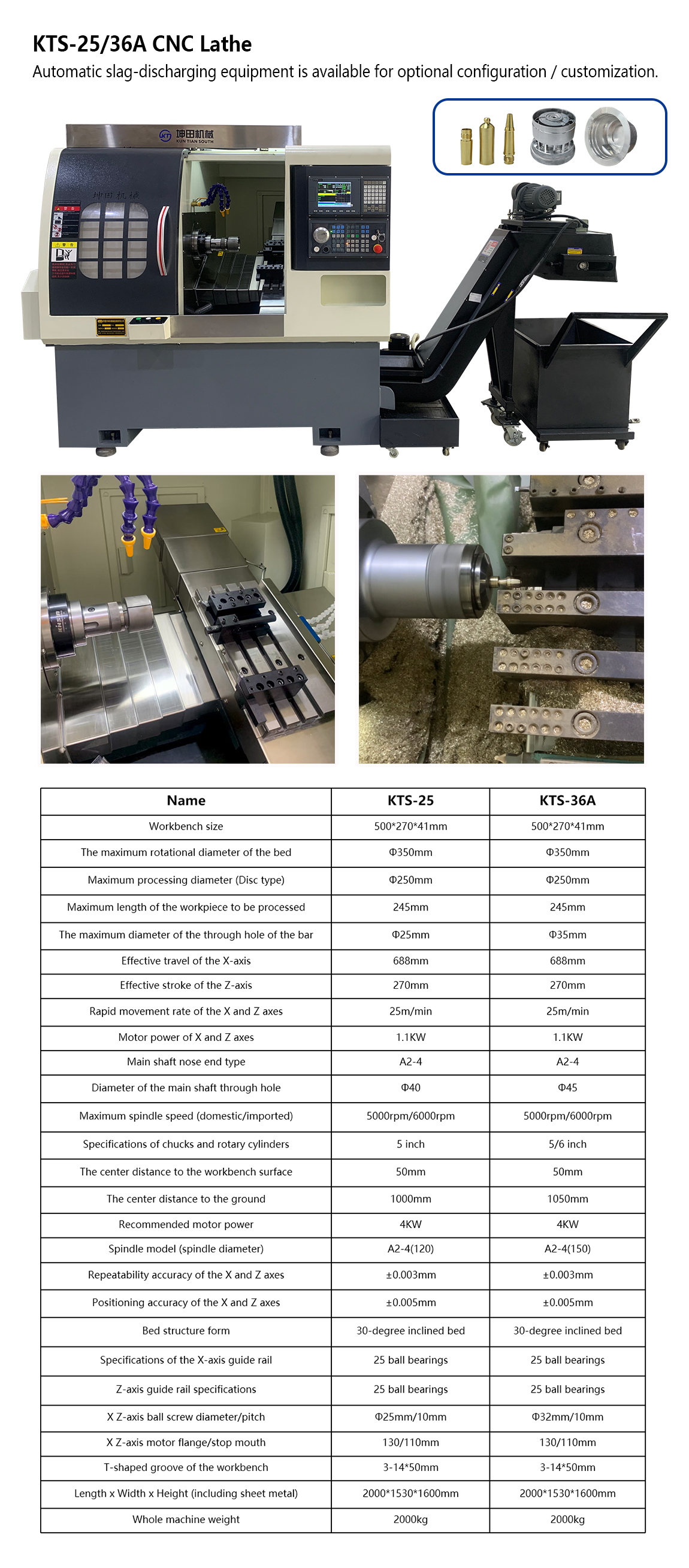

KTS-25/36A CNC Lathe

25/36A CNC Lathe Introduction

1. Basic Features

Processing Capacity: The maximum processing diameters are 25mm and 36mm respectively, and the maximum bar material processing diameters are 25mm and 35mm respectively.

High Processing Accuracy: The repeatability positioning accuracy is generally within 0.003-0.005mm, which can meet the requirements for processing precision parts.

High Spindle Speed: The spindle speed can reach 5000-6000 rpm, suitable for processing small and high-precision parts.

Compact Structure: The floor space is small, suitable for processing workshops with limited space.

High Automation Level: It can be equipped with automatic feeding and chip removal devices to improve production efficiency.

2. Application Scenarios

Precision Part Processing: Such as the turning of small precision parts in instruments, electronic components, medical devices, etc.

Batch Production: Suitable for processing large quantities of small-sized parts, which can improve production efficiency and reduce production costs.

Complex Shape Processing: Through programming, complex shape parts such as threads, arcs, and conical surfaces can be processed.

3.Click on the following text link to watch the video

25 CNC Lathe Processing of Metal Parts
